When revised USP compounding standards took effect, a small Texas pharmacy faced a hard truth: without a compliant cleanroom, it could no longer prepare certain sterile prescriptions. The customer needed a fast, turnkey solution that would meet ISO-class requirements, fit inside an existing office footprint, and integrate with local mechanical and electrical trades.
PAC’s Cleanroom Experts handled the project end-to-end, designing a modular ISO 7 cleanroom, sourcing and specifying equipment, coordinating trades, and supervising installation and coordinating final certification testing. The result was a compact, audit-ready space that restored the pharmacy’s ability to safely compound sterile medications.
What Changed with USP 797 and USP 800 and Why Pharmacies Must Act
USP General Chapter 797 sets standards for compounding sterile preparations to reduce contamination risk and protect patients. The chapter was revised and reached official status in late 2023, raising expectations for environmental controls, monitoring, and process controls for sterile compounding. Pharmacies that compound sterile preparations must comply with these standards or face enforcement actions by accrediting bodies and state boards.
Project Facts
- Customer:
- Pharmaceutical
- Location:
- Texas
- Project Objective:
- Achieve compliance with updated USP 797 standards
- Application:
- Sterile prescription preparation & packaging
- Cleanroom Size:
- 153 sq. ft., 8′ interior height
- Cleanroom Class:
- ISO 7
- Turnaround Time:
- 1 week onsite build
USP 800 addresses the safe handling of hazardous drugs and applies to facilities that receive, store, prepare, or administer them; compliance protects staff and the environment and often requires separate containment considerations.
These updates mean that many pharmacies that previously operated without a controlled cleanroom must now upgrade facilities, add engineering controls, formalize environmental monitoring, and update staff training and SOPs to remain open and compliant.
Urgent Compliance in a Constrained Space
The pharmacy needed an ISO 7-class environment capable of supporting sterile compounding in accordance with the current USP guidance. This project included:

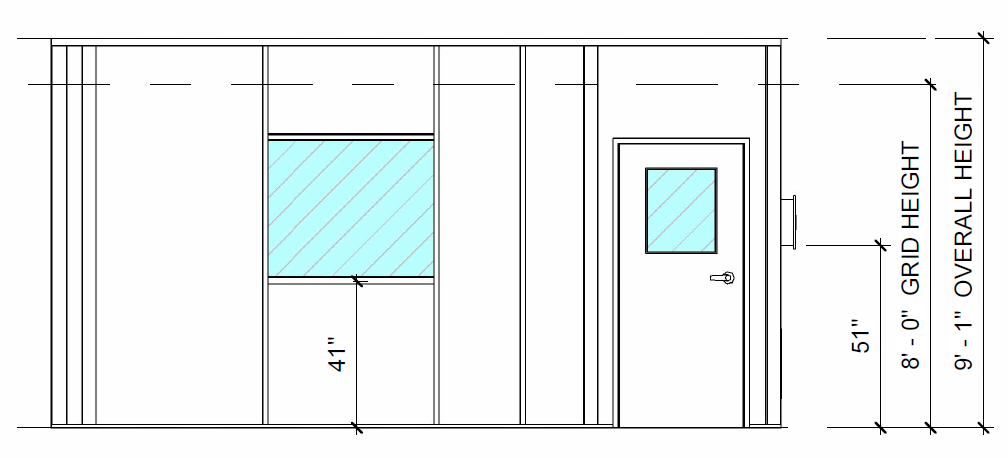

Limited footprint and ceiling constraints: The intended cleanroom would be installed inside an existing office-style suite; overhead obstructions in the plenum and limited vertical clearance required careful dimensioning and a compact build approach. Final internal dimensions: 17′ × 9′, ~8′ tall.
Multi-trade coordination: The pharmacy’s local contractors handled HVAC and electrical work. PAC needed to provide exact mechanical loads, FFU specifications, and wiring locations to ensure seamless integration.
Time sensitivity: The pharmacy wanted a rapid turnaround to avoid operational disruption and continued downtime risk. PAC committed to a quick lead time and a concentrated on-site build schedule.
Modular, Recirculating Design Tailored for Fast Compliance
Here’s how PAC addressed the needs and compliance requirements of an ISO 7 class cleanroom within a limited space:

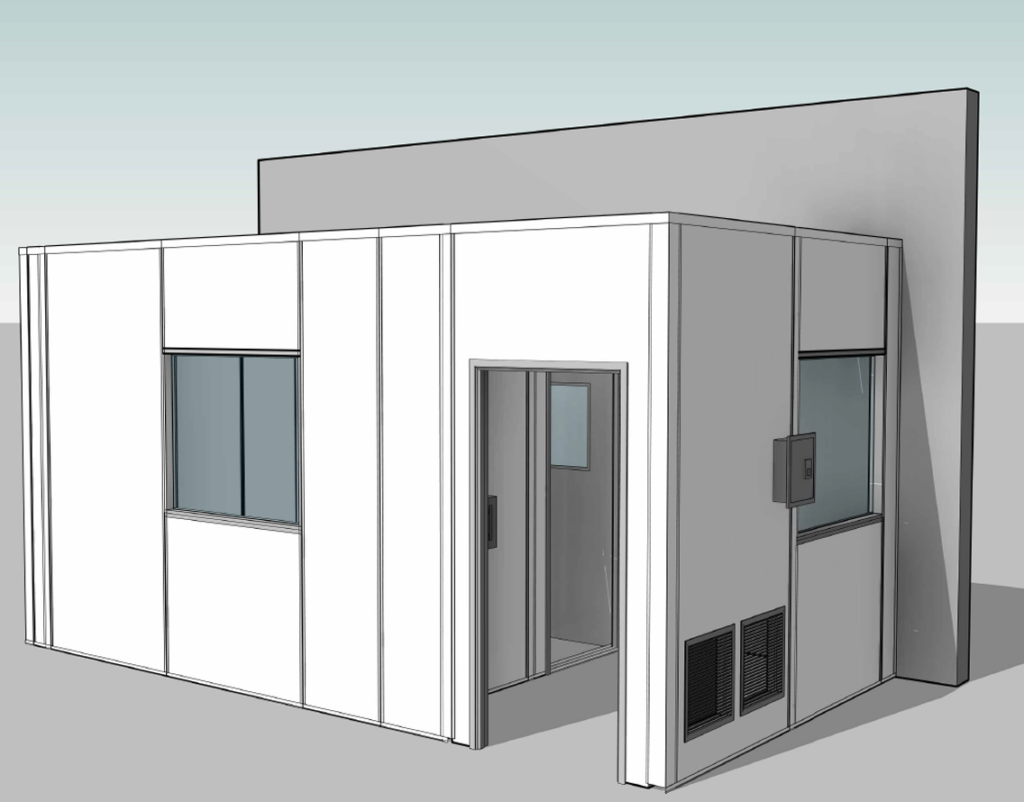

Modular Wall System
4-foot modular panels allowed factory fabrication and rapid onsite assembly. The hardwall modular approach provides tight seals, smooth surfaces for cleaning, and simplifies future reconfiguration or expansion.
Airflow & Filtration

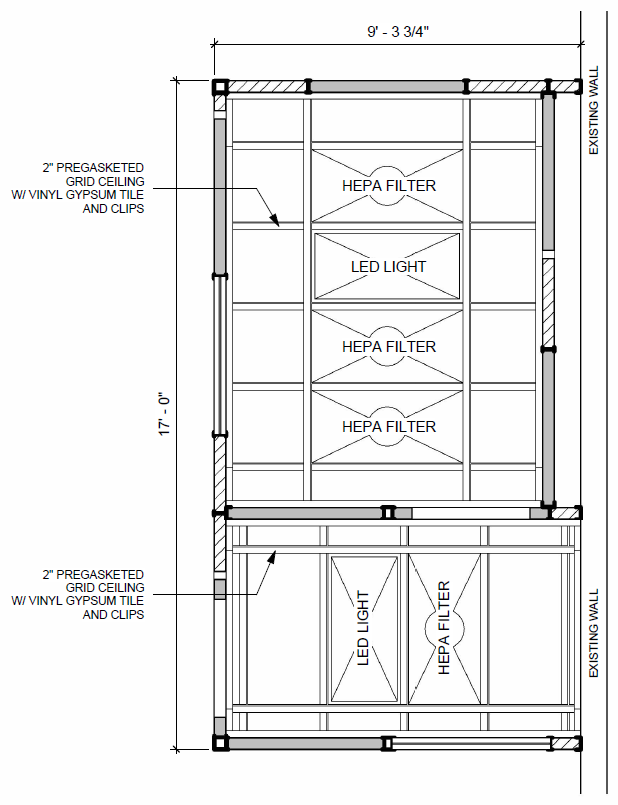

PAC implemented a recirculating airflow design with a plenum above the ceiling to feed conditioned, HEPA-filtered air back into the room, using Envirco MAC 10 Fan Filter Units (FFUs) mounted in the ceiling. This configuration supports the required air changes per hour and particulate control for an ISO 7 environment. Typical ISO 7 airflow design guidance recommends high air turnover design values commonly range from roughly 30–60 ACH, depending on occupancy and process; PAC sized and tuned the system to meet certification criteria.
Electrical & Lighting
Pre-wired wall panels with receptacles minimized onsite electrical work and simplified final tie-ins. Energy-efficient LED fixtures were specified for consistent illumination and low maintenance.
Flooring and Wall Finishes
PAC installed medical-grade roll-down vinyl flooring that turned up at the wall for a sealed coved base, eliminating seams where particulates could accumulate and meeting wash-down and audit expectations.
Overcoming Onsite Challenges
1. Detecting Ceiling Clearance Risk Before Fabrication
A recently modified plenum above the intended room reduced the available clearance. PAC re-verified field dimensions before manufacturing, catching this issue ahead of production and avoiding a costly retrofit while keeping the project on schedule.
2. Resolving FFU Fitment and Ceiling-Grid Constraints
Existing overhead beams and grid orientation initially blocked the installation of the FFUs. PAC’s installers adjusted the orientation of the ceiling grid and coordinated minor field modifications to position the FFUs without compromising airflow coverage.
3. Correcting Wall Finish Errors in the Gowning Area
A contractor skinned the gowning area wall with textured FRP instead of the smooth FRP required for cleanroom surfaces. PAC identified the issue immediately, directed the rework to a smooth finish, and issued a change order for the additional corrective scope, ensuring the final surface met cleanability and inspection expectations.
Results: Fast, Compliant, and Ready for Operations
Timeline: 5 weeks of material lead time; 1 week of onsite assembly and flooring installation.

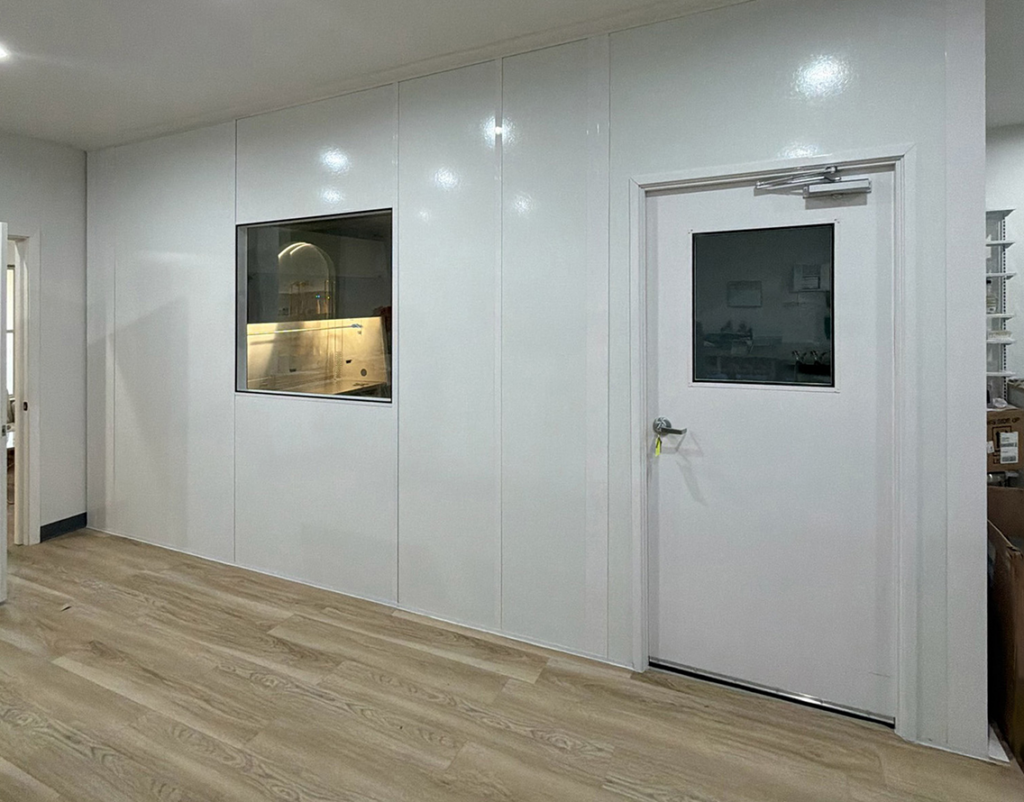

Operational outcome: The pharmacy now has an ISO 7-compliant modular cleanroom that supports sterile compounding and prescription filling previously performed off-site. PAC delivered a sealed, audit-ready environment with documented design and installation controls to support certification.
Business impact: The customer reduced operational risk, stayed compliant with USP 797 expectations, and gained the flexibility to expand services in the future.
Small Space, Big Impact: A Successful Outcome of a Turnkey Cleanroom Build
By integrating modular cleanroom design, practical on-site troubleshooting, and careful coordination with local contractors, PAC successfully delivered a compliant, audit-ready ISO 7 environment that restored the customer’s essential sterile compounding capacity.
If you are considering an upgrade to meet USP 797/800 requirements or looking into a modular cleanroom for compounding or other controlled processes, PAC’s Cleanroom Experts can guide you through the entire process. Contact PAC to schedule a consultation and discover how we can help you maintain compliance and keep your operations running smoothly.
